About the ATtiny85 Microcontroller

  1. Usb Drivers Windows 10
  2. Attiny85 Usb Drivers Free

The ATtiny85 microcontroller is a powerful yet extremely low cost (~ 50¢ each) integrated circuit. The chip itself operates with an 8-bit data bus, which means it can access 8-bits of data per computer instruction (set, copy, add, subtract, multiply, compare, etc.). Its CPU speed is capable of up to 8MHz and it has 8KB flash memory for storing Arduino programs. [By comparison, our Adafruit Feather M0 microcontrollers have a 32-bit data bus and operate at 48MHz with 256KB flash memory. Much more powerful, but they cost 7 times as much!]

The ATtiny85 requires an operating voltage between 1.8V and 5.5V and has 5 I/O (input/output) pins for connecting electronic components.

Here is the pin breakout:

The ATtiny85 will plug directly into the device, which plugs into your computer's USB port. Most likely, you'll need to install the correct driver, especially if you're using Windows. Installing the proper driver 'libusb-win32' is the final step. With the drivers sorted out, follow these steps: 1. Go into your Arduino IDE under Tools Board. Att: This may lead to a 'Unknown device' pop-up in Windows, if the user program does not have USB functionality itself. V2.02 August 3rd, 2015. Fixes timing bug with Windows 10 USB drivers. Some Win 10 drivers reduce the delay between reset and the first data packet to 20 ms. This led to an issue with osccalASM.S, which did not terminate correctly. Attiny85 usb driver free download. USB Virtual Host Controller Interface This project consists of a linux kernel driver and some user-mode libraries. They allow a process to. Asarangan wrote: I am trying to implement a simple USB interface using ATTINY85. I know USB is not natively supported for this chip, but V-USB claims to do this at the software level. Although I can get their example codes to compile and flash the chip without any trouble, the interface is not being recognized when plugged into Windows 10. With the help of the bootloader, you’ll be able to load code from your Arduino IDE onto the ATtiny85 using a USB connection. This means that you won’t need to remove the MCU from your circuit in between programming rounds.

Pin #8 (VCC) is connected to the positive terminal of your voltage source (1.8V - 5.5V). Pin #4 (GND) is connected to ground / the negative terminal of your voltage source. The Arduino programming language can be used to control pins #5, #6, #7, #2 and #3:

  • Pins 0 - 4 (marked in light blue) are all capable of digitalWrite()/digitalRead()functions
  • Pins 0 & 1 are capable of PWM analogWrite() at 8-bit resolution (0-255)
  • Pins A1-A3 (marked in red) are capable of analogRead(), measuring analog voltage through a 10-bit ADC (Analog to Digital Converter).1

The RESET pin is a special pin; connecting this pin to GND will restart the program running on your ATtiny85.

ATtiny85 Hands-On with Tinkercad

Over the course of this tutorial, we will create several circuits with the ATtiny85 microcontroller using Autodesk's Tinkercad circuit simulator:

  • The classic project 'Blinky'
  • Programmatically Fade an LED
  • Programmatically Fade an LED with a Potentiometer
  • RGB LED color control with a Potentiometer

First, however, we need to wire up our ATtiny85 to a power supply.

Powering an ATtiny85

Warning

As noted in the 'About' section above, the ATtiny85 has an operating voltage between 1.8V and 5.5V. Anything below 1.8V and the microcontroller will not have enough voltage to function. Anything over 5.5V and you risk overloading the chip, as illustrated by the 9V battery blowing the IC in the image below:

For this tutorial, you can use 1.5V AA batteries -- you'll need more than one (2 batteries = 3V; 3 batteries = 4.5V) -- or a 3V coin cell battery. The illustrations for the remainder of this tutorial will make use of a 3V coin cell battery.

  1. Go to tinkercad.com and sign into your account.

  2. Go to your Tinkercad Dashboard: https://www.tinkercad.com/#/dashboard

  3. Click on the Circuits button in the left panel.

  4. Click on the green 'Create new Circuit' button.

    A new blank canvas will open in your browser.

  5. Place your ATtiny85 in the center of your breadboard, straddling the breadboard's ravine.

  6. Place a battery near your breadboard.

  7. Use a red wire to connect the positive (+) terminal of the battery to the + power bus of the breadboard.

  8. Use a red wire to connect the + power bus of the breadboard to the VCC pin of the ATtiny85.

  9. Use a black wire to connect the negative (-) terminal of the battery to the - power bus of the breadboard.

  10. Use a black wired to connect the - power bus the breadboard to the GND pin of the ATtiny85.

Project 'Blinky'

First let's wire up the ATtiny85 for the classic Arduino project, Project Blinky.

Here is a schematic:

For this project, you will need the following additional components:

  • 1 x Red LED
  • 1 x 47Ω Resistor

Drag the two components into your Tinkercad window and, consulting the circuit schematic above, recreate the circuit on your breadboard.

  1. Connect the anode (positive terminal) of the LED to digital pin 0 (light blue) of the ATtiny85 microcontroller.

  2. Connect the cathode (negative terminal) of the LED to one end of the resistor.

  3. Connect the other end of the resistor to GND / the negative (-) power bus rail.

  4. Your final wiring should look like this:

Next we'll turn to the code necessary to turn the LED on and off programmatically.

  1. Click on the Code button in the upper-right of the interface.

  2. By default, Tinkercad will open into the Blocks code interface. Blocks is a visual coding paradigm based on MIT's Scratch. Note that Tinkercad has already pre-populated the Blocks code interface with blocks that set the ATtiny85's 'built-in' LED to HIGH, wait one second, and then set the ATtiny85's 'built-in' LED to LOW, waiting another second.

    This may be confusing, since the ATtiny85 does NOT have a 'built-in' LED like other Arduino microcontrollers such as the Arduino Uno do. We could replace the blocks that reference the built-in LED with the block that would 'Set Pin 0 to HIGH/LOW'.

    However, we're going to switch over to the Text coding view instead.

  3. Find the dropdown in the upper-left of the code panel and change it from 'Blocks' to 'Text'. You will be prompted to confirm this intention. Click 'Continue.'

  4. You will note that Tinkercad has pre-populated the code interface with the following:

    As it happens, this is just the code we need to turn pin 0 of the ATtiny85 on and off every second.

    In the setup() function, the pinMode of pin 0 is set to OUTPUT. And then in the loop() function, the digitalWrite() function is called on pin 0 and set to HIGH. A delay() function of 1000 milliseconds is called. And then a second digitalWrite() function sets pin 0 to LOW, followed by one more 1000 millisecond delay.

  5. Click 'Start Simulation' and your LED should blink on and off.

Congratulations! You've completed Project Blinky!

Programmatically Fade an LED

We can use this same wiring scheme to fade an LED instead of blinking it. Instead of the digitalWrite() function, we'll instead use analogWrite(), taking advantage of the fact that Pin 0 is one of two pins on the ATtiny85 (marked in green below) that is capable of PWM (pulse width modulation).

Let's modify the code accordingly:

  1. The setup() function can be left alone; we want digital pin 0 to function as an OUTPUT.

  2. The loop() function requires significant modification, so delete its contents entirely and we will work through the required logic line by line.

  3. Recall that PWM works by modifying the duty cycle of the pin. Rather than being HIGH 100% of the time with a digitalWrite(pin, HIGH) function, or LOW 100% of the time with a digitalWrite(pin, LOW) function, the analogWrite() function enables us to set different percentages of HIGH/LOW to approximate an analog voltage signal at 256 levels between 0V (LOW) and 3V (HIGH). So, analogWrite(0, 127) will cycle the LED HIGH 50% of the time and LOW 50% of the time and in the case of our 3V circuit, will approximate sending an analog voltage of 1.5V through the LED.

    So, to fade our LED, we will want to iterate through increasing values between 0 and 255 to fade the LED to on, and then iterate through decreasing values from 255 to 0 to fade the LED off. One way to write that code is line by line:

    But that is NOT very efficient!

  4. Luckily, like many programming languages, Arduino has a for control structure that will allow us to radically economize on the lines of code necessary to achieve the same result.

    Here is the basic structure of a for loop:

    By convention, most programmers use the variable name i within a for loop. For example:

    But one can use any variable name:

    The incrementing code, i = i + 1 is often abbreviated as i++:

    Finally, incrementation is not limited to increments of 1:

  5. Whew! That was quite a detour. Let's get back to our LED fade loop() function.

    We want our analogWrite() function to iterate up from 0 to 255 in increments of 5, so within our loop() function we can write:

    Click 'Start Simulation' and you'll see that we're halfway there. The LED starts OFF, fades to ON, and then jumps back to OFF again, fades to ON, jumps back to OFF, etc, etc.

  6. So we need a second for loop to decrement the light level (highlighted in yellow):

    Click 'Start Simulation' and the LED should slowly fade in and out, as if it were breathing.

Congratulations! You've successfully completed the 'Programmatically Fade an LED' project!

Programmatically Fade an LED with a Potentiometer

In this next project, we'll add a potentiometer to our circuit and use it to control the fade level of the LED.

Here is the circuit schematic for your reference:

  1. First, delete all of the code in the Text interface of your Code panel. We will write new code for this project.

  2. Next, close the Code panel to access your Components bin and locate the Potentiometer. Drag it onto your Tinkercad canvas.

  3. Connect the outer terminals of the potentiometer to the positive (+) and negative (-) bus of your breadboard.

  4. The 'wiper' terminal of the potentiometer should be connected to one of the three pins on the ATtiny85 that are capable of reading analog voltages. They are marked in red as pins A1, A2, and A3 on the pinout diagram.

  5. In the example below, we've connected the potentiometer's wiper to pin A3 of the ATtiny85 using a yellow wire.

Note

At this point you may be asking: Why didn't we connect the potentiometer wiper in series with the LED to directly control the LED's brightness?

That's a great question! Indeed, you might even be wondering why we need the ATtiny85 to accomplish this project at all! In fact, if all we want to do is use a potentiometer to control the brightness of an LED, we don't need a microcontroller to do that! You could save yourself time and money and avoid having to touch code at all!

The purpose of this project, however, is on the one hand purely pedagogical: to teach you how to use a microcontroller to read an analog voltage. A microcontroller can put that information to use in many different ways. In the last project of this tutorial we'll make use of that analog signal to create a circuit that would be quite a bit more difficult to accomplish without a microcontroller. Stay tuned!

Now that we've wired up our potentiometer, let's turn to the Arduino code necessary to read its output.

Usb Drivers Windows 10

  1. Open the Code panel and again, switch to the Text interface.

  2. Let's begin by initializing some variables. We need one to hold the value coming in from our potentiometer on pin A3:

  3. And let's use a variable name to identify the pin that attaches to our LED. This is considered a good practice in case you ever need to modify the pin configuration on your hardware. Rather than having to hunt through your code for every reference to pin 0, you can simply change it in the variable list at the top of your sketch.

  4. Let's do the same for the pin that attaches to our potentiometer:

  5. Now that we've declared our variables, we can use these in our setup() function to set these pins as OUTPUT and INPUT as needed:

  6. We can now turn our attention to our program's loop() function.

    1. The first thing we want to do each program cycle is read the value coming in over the ADC at pin A3 from the potentiometer and assign it to our pot_value variable:

    2. The next thing we want to do is to use that value to set the analogWrite() value for the LED pin.

      Important!

      The ADC of pin A3 runs at 10 bits, which means that analogRead() is going to be giving readings between 0 and 1023. Our analogWrite() function can only take an 8 bit value, between 0 and 255.

      To reconcile this difference, we need to use Arduino's map() math function and then use that re-mapped value to drive our LED.

      In the code highlighted below, we first re-map the 10 bit pot_value to an 8 bit number and then pass that re-mapped value to analogWrite().

  7. Our full code should read as follows:

  8. Click on 'Start Simulation.' Use your mouse to manipulate the potentiometer. When the indicator is closest to the pin you have connected to the positive (+) voltage, the LED should burn brightest. When the indicator is moved toward the pin that you have connected to ground (-), the LED should dim and then turn off completely.

Congratulations! You've completed the 'Programmatically Fade an LED with a Potentiometer' project.

Challenge

You can use this same hardware setup to build another classic Arduino project: Using a potentiometer to control the blink speed of an LED.

Attiny85 Usb DriversAttiny85 Usb DriversWindows

All you need to change is the Arduino code. See if you can't figure out how to make it work on your own, using the digitalWrite(), delay(), and map() functions.

Hint: Map the potentiometer values to milliseconds and use in the delay() function!

Email your code to your professor!

RGB LED Color Control with a Potentiometer

For our final circuit in this tutorial, we'll introduce a new component - an RGB LED - and use the readings from a potentiometer to programmatically change its colors depending on where the potentiometer is positioned.

To save time, we'll begin by duplicating the project we just completed above.

  1. Return to your Circuits Dashboard.

  2. Find the design you just completed and click on the cog in the upper right corner of the project's card, as illustrated below.

  3. From the drop-down that appears, choose 'Duplicate.'

  4. Tinkercad should take you to a new project, automatically entitled 'Copy of [original project name]'.

For this circuit, we'll use the following circuit diagram:

Note

Note that the ATtiny85 in its basic configuration only has two PWM pins, and to use the full range of an RGB LED you need to have three. While it is possible to circumvent this limitation with code to enable a 3rd PWM pin, the Tinkercad simulator is not capable of that degree of complexity.

So for the purposes of this tutorial, we'll simply make by using the ATtiny85's two PWM pins (0 and 1) and then pin 2 as a digital pin to generate a more limited set of colors.

Let's begin with the wiring of the RGB LED.

  1. Delete the red LED, its resistor, and all of its related jumper wires from your project. This should leave only the battery and the potentiometer wired to your ATtiny85.

  2. Locate in the Components bin the RGB LED component and drag it to your breadboard.

  3. Connect the 'common cathode' (-) pin of the RGB LED to GND.

  4. Add three 47Ω resistor to your canvas, connecting one each to the red, green, and blue pins of the RGB LED.

  5. Connect each resistor to a specific digital pin on the ATtiny85, as follows:

    • Connect the blue pin's resistor to digital pin 1.
    • Connect the green pin's resistor to digital pin 0.
    • Connect the red pin's resistor to digital pin 2.
  6. Your circuit should look something like this:

    Tip

    If the image above is confusing to you, remember how a breadboard works. Everything in a numbered row on one side of the ravine is connected together.

Now we can turn our attention to the Arduino Code. An RGB LED works by mixing three different LEDs - one red, one green, one blue - in different ratios of intensity.

  1. Let's begin by declaring variables for each of our RGB LED's pins:

  2. And then let's initialize each of these pins as OUTPUTs in the setup() function:

  3. Here is a table that outlines different color combinations for the Tinkercad simulator based on ratios of red, green, and blue:

    ColorRedGreenBlue
    Red100%0%0%
    Green0%100%0%
    Blue0%0%100%
    Yellow100%100%0%
    Orange100%25%0%
    Purple100%0%100%
    Magenta100%0%30%
    Turquoise0%100%100%
  4. The above values can be translated to code, using analogWrite() and converting the percentages to an 8-bit value. So the color orange can be achieved by the following:

    Since our redPin, pin 2 is not capable of PWM, we instead need to use digitalWrite() on that pin:

  5. Put the code above in your loop() function and test it out. The full code is:

    The RGB LED should glow orange.

  6. One of the things you can do in Arduino is declare custom functions outside of your setup() and loop() functions and then call them in these main functions. For example, you could create a function below your loop() function for the color orange:

    Then you can call that function in your loop():

  7. Go ahead and create additional custom functions for red, blue, green, yellow, and turquiose. Try to do this on your own, without consulting the code below.

  8. Then create a simple sketch that cycles through the colors for a duration of two seconds each. Replace your loop() function with the following:

  9. Test out your code by clicking the 'Start Simulation' button.

    Failure?

    If you used a different sequence of colors than the sequence above, you may have noticed that the simulator skips one or more of your colors. This is an error in the simulator, not your code.

    I have found that the simulator struggles to switch to orange in particular.

Finally, we can now integrate the potentiometer back into our code and use it to select different colors.

Note that the potentiometer has seven (7) dots around its perimeter, which have been marked with letters a-g in the image below left. These markings roughly correspond to the 10-bit potentiometer readings in the table at right:

Markingpot_valuecolor
a1023red
b850blue
c680green
d510yellow
e340purple
f170turquoise
g0orange

Since it is unlikely that anyone can consistently set the potentiometer to the exact position that generates those specific values, we can create a buffer of a range of values to segment our potentiometer into seven 'zones':

Markingideal pot_valuerangecolor
a1023940 - 1023red
b850770 - 940blue
c680599 - 769green
d510428 - 598yellow
e340257 - 427purple
f17086 - 256turquoise
g00 - 85orange

Alternatively, and perhaps more straightforward, we can map the potentiometer values to a smaller range of values and then use the following to demarcate the potentiometer:

Markingideal pot_valuerangecolor
a1817 - 18red
b1514 - 16blue
c1211 - 13green
d98 - 10yellow
e65 - 7purple
f32 - 4turquoise
g00 - 1orange

Let's make use of this information to control the RGB LED color with the potentiometer. Return to your project's code in the Code panel.

  1. Add the highlighted variables -- they should be familiar to you -- above your setup() function:

  2. Add the highlighted line to your setup() function:

  3. Finally, re-write your loop() function in this way:

    1. At the start of each program loop, set the value of pot_value to the reading from the potentiometer:

    2. Next, let's re-map the potentiometer value to a new int variable named val:

    3. Then use a series of if statements to set the RGB LED to different colors based on the value of val depending on whether it falls within a specified range of values, as in the code below:

  4. Test your project by clicking 'Start Simulation' and then click on the potentiometer to move it between different marks.

Great job completing the last project in this tutorial!

Begin brainstorming a circuit based on the ATtiny85 that you'd like to prototype and have manufactured...

  1. '10-bit' refers to the resolution of the ADC, meaning that it can convert an analog signal into 1024 (0-1023) discrete levels. See https://en.wikipedia.org/wiki/Analog-to-digital_converter#Resolution↩

In this project, I will talk about ATtiny85, what are the tools required for Getting Started with ATtiny85 board, installing drivers for Windows OS and finally how to program ATtiny85 Microcontroller using Arduino IDE.

A Brief Note on ATtiny85

The ATtiny85 Microcontroller is possibly the smallest Microcontrollers available today. It is an 8-bit Microcontroller based on the AVR RISC Architecture. Physically, it needs only 8-pins for complete operation (although some packages like QFN16 use 16-pins just for packaging).

There are three variants of ATtiny85: ATtiny25, ATtiny45 and ATtiny85. The main difference between these three ICs is the amount of memory each device has (Flash, EEPROM and RAM).

ATtiny85 Microcontroller, the target device of this project has 8KB of In-system programmable Flash, 512B of EEPROM and 256B of SRAM.

Pin Diagram of ATtiny85

Attiny85 Usb Drivers Free

As mentioned earlier, ATtiny85 is an 8-pin Microcontroller and the most common IC package for ATtiny85 is the 8-pin SOIC. The following image shows the Pin Diagram of an 8-pin SOIC ATtiny85.

From the above pin diagram, you can observe that except for VCC and GND, rest of the 6-pins of ATtiny85 are multiplexed with multiple functionalities.

Pin Description

VCC: It is the supply voltage pin. For ATtiny85 running at a speed of 10-20MHz, the supply voltage should be in the range of 2.7V – 5.5V.

GND: Ground Pin

PORTB (PB0 – PB5): The rest of the 6-pins in ATtiny85 are Port B Pin. Port B is a 6-bit I/O Port. All the 6 port B have multiplexed operations with each pin capable of handling 3 or more operations.

RESET: It is multiplexed with PB5. It is an active LOW pin.

The following image shows the list of alternative functions on the PORTB pins.

ATtiny85 Board

Several manufacturers started developing tiny development boards with ATtiny85 as the main controller. One such board is shown in the image below.

As you can see, apart from the ATtiny85 Microcontroller IC, there are a few other components on the board like a 5V Regulator, headers for I/O pins, few passive components and a MicroUSB port for programming and power supply.

Getting Started with ATtiny85 Board

Now that we have seen a little bit about ATtiny85 Microcontroller and its development board, lets dig into the aspects of how to use this board, what are the necessary tools (like Drivers) required and also how to program the ATtiny85 Microcontroller.

Let me start with programming ATtiny85. There are couple of ways you can program your ATtiny85 but I have chosen the easiest of all: using Arduino IDE to program ATtiny85. For this, you need to make some changes to the Arduino IDE.

Next important thing is the drivers. USB Drivers for ATtiny85 Board are very important as the driver is responsible for enabling the Arduino IDE to program the ATtiny85.

Detailed Video

Before looking at the steps involved for getting started with ATtiny85 board, take a look at the following video, which basically explains the same.

Setting up Arduino IDE

The first step is to setup Arduino IDE for programming ATtiny85. Open your Arduino IDE and go to File à Preferences. In the tab that says “Additional Boards Manager URLs:”, copy and paste the following link and click on ok.

This is similar to what you might have done for ESP8266.

Now, go to Tools → Board: → Board Manager… and search for “Digistump AVR Boards”. Select the same and click on install. If the installation is successful, you can see the board in Tools → Board: option. We will come back to this later.

Installing Drivers

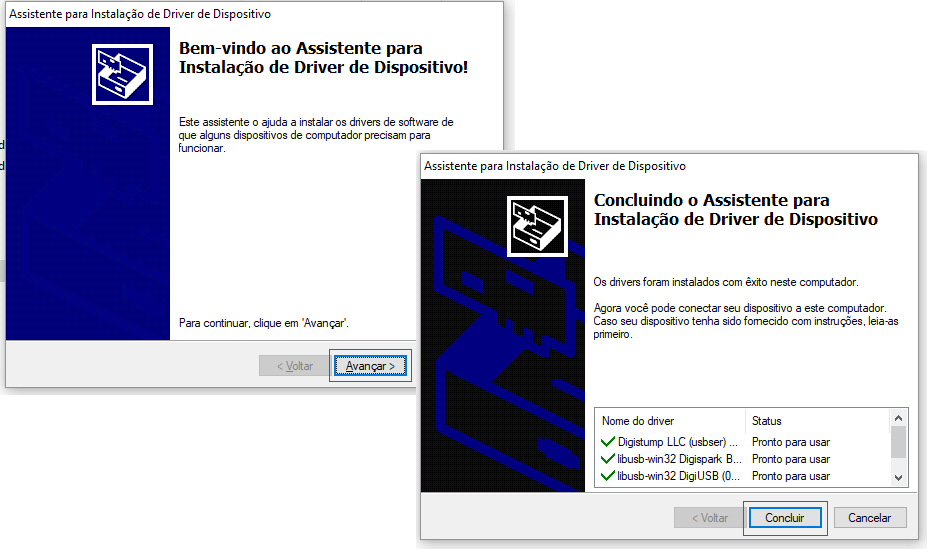

Next step is to install the necessary USB drivers for the ATtiny85 board. I will specify how to install drivers for Windows system. Go to the following link and download the “Digistump.Drivers.zip” file. Extract the contents of the zip file and double click on “DPinst64” application to install the drivers.

NOTE: If your system is a 32-bit system, select “DPinst” application.

Once the drivers are successfully installed, you can plug in your ATtiny85 board to the computer using an USB cable. To check if the device is detected or not, go to Device Manager on your Windows and your device will be listed under “libusb-win32 devices” as “Digispark Bootloader”.

Programming ATtiny85 with Arduino IDE

Now, you are ready to upload your first program on to your ATtiny85 Microcontroller. You don’t have to plug in your device to the computer until the IDE says so. Even if you plug in, you have to disconnect and reconnect when asked.

First step in programming ATtiny85 is to select the board in Arduino IDE. Go to Tools → Board: and select “Digispark (Default -16.5mhz)” board.

There is a user LED connected to PB1 of ATtiny85. In order to blink that LED, use the following code.

Click on upload button in Arduino IDE. Assuming you haven’t connected the ATtiny85 to the computer, the Arduino IDE will display a message saying “Plug in device now”. Connect your ATtiny85 board to the computer now and it will be programmed and the LED will start blinking.

Related Posts:
